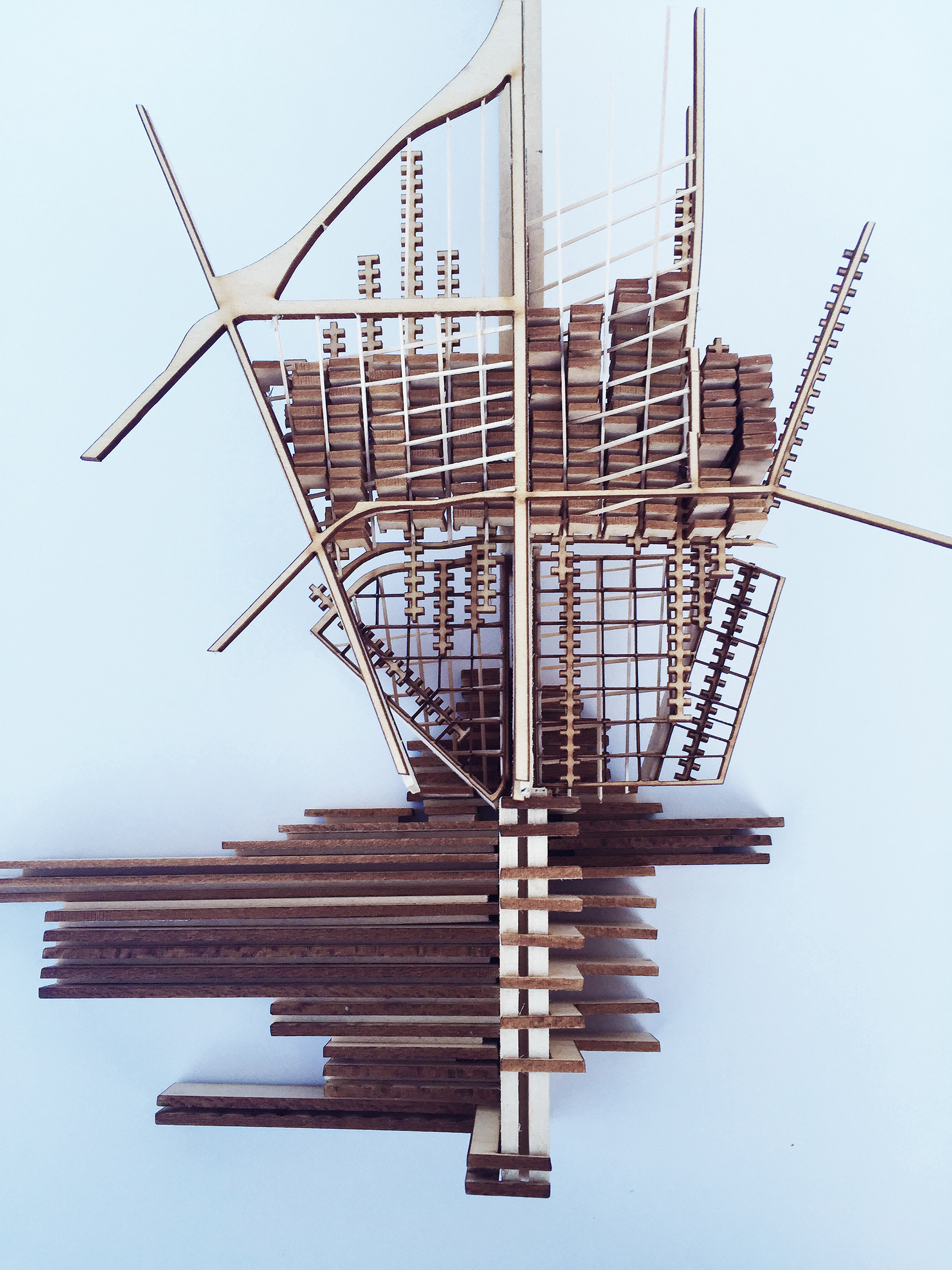

TOP VIEW

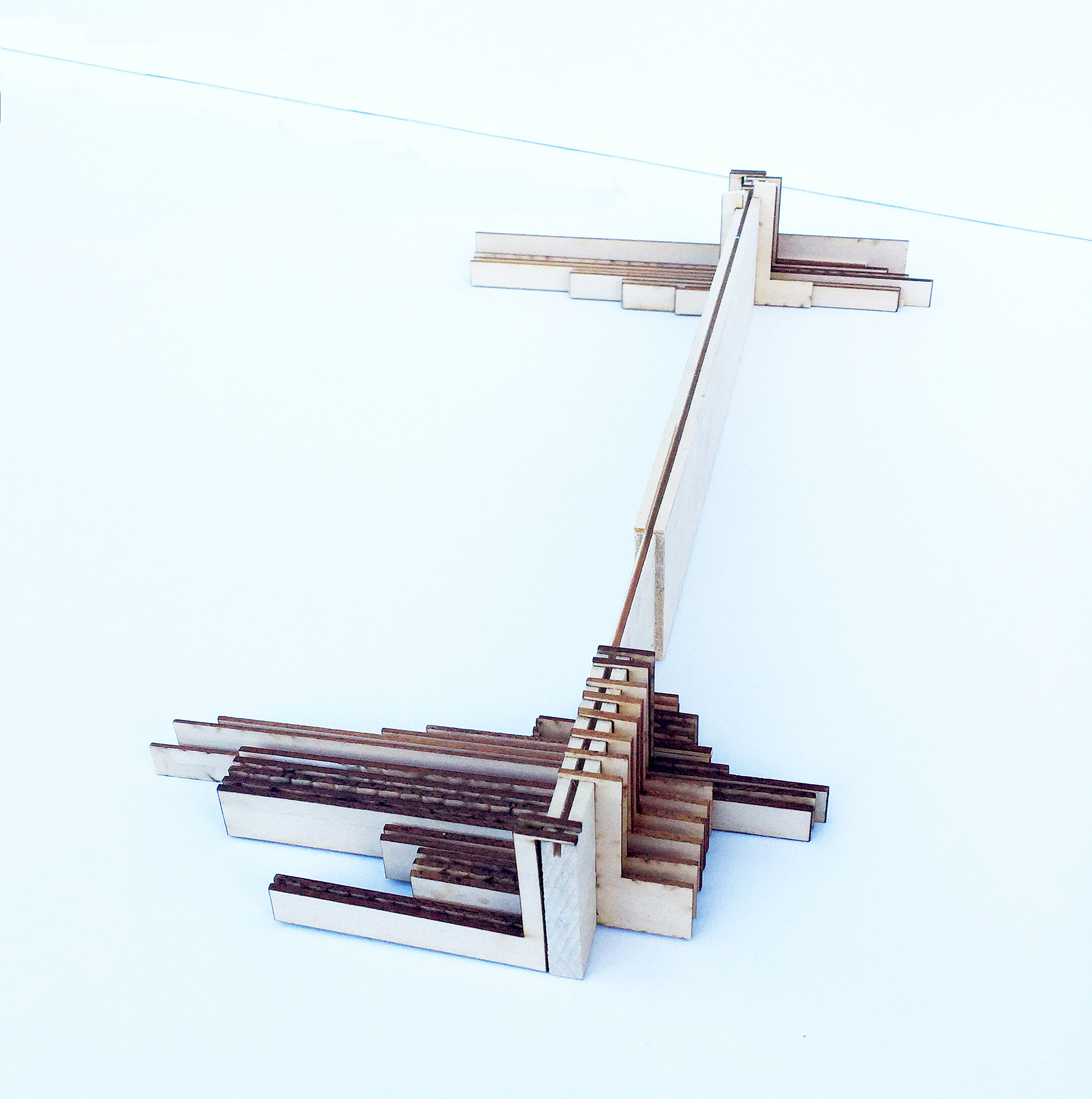

MAIN HISTORICAL AXIS/ CANAL, 1ST COMPONENT OF MODEL

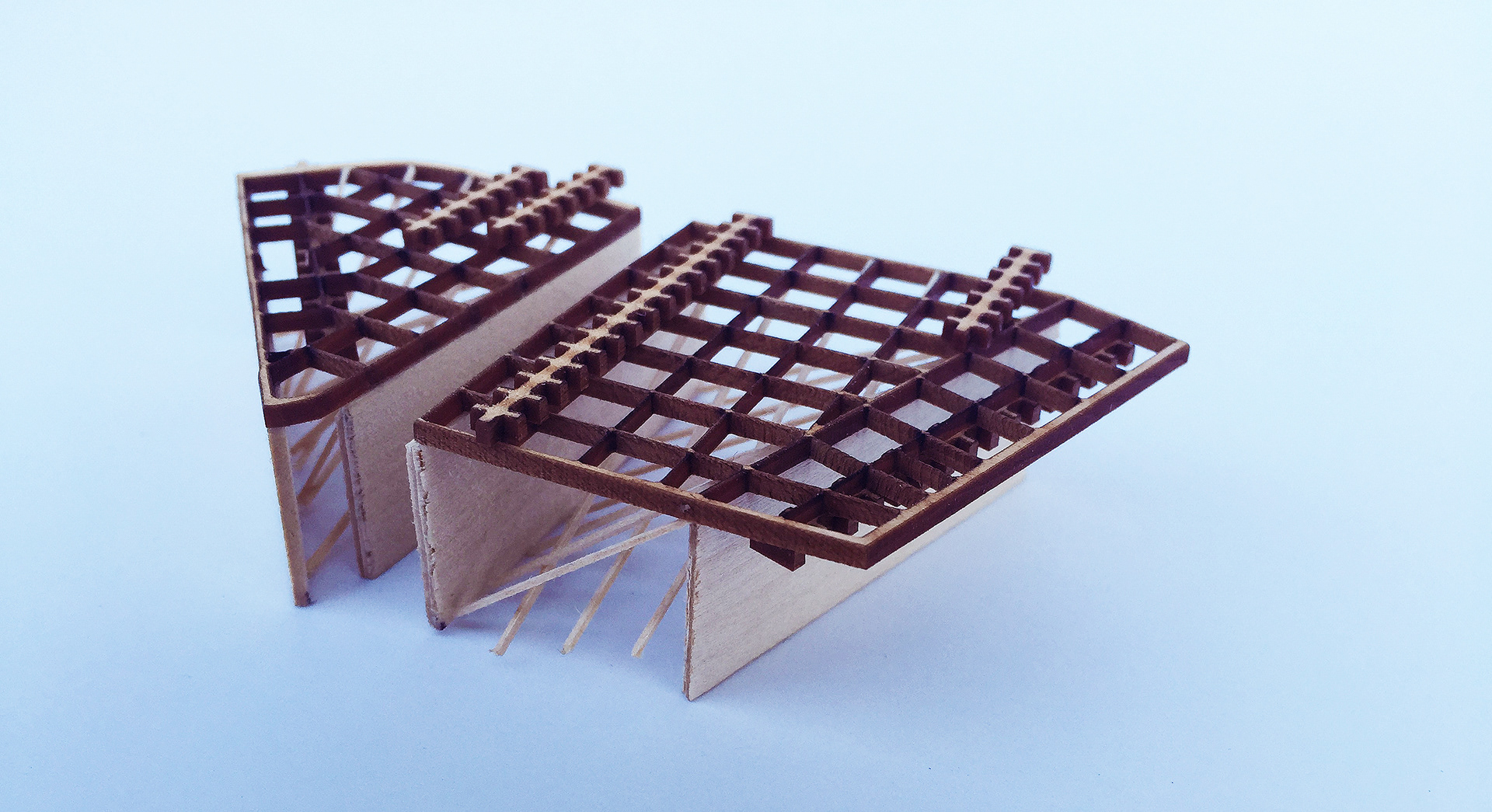

DISTRICT OF MARIGNY, COMPONENT 2 OF MODEL

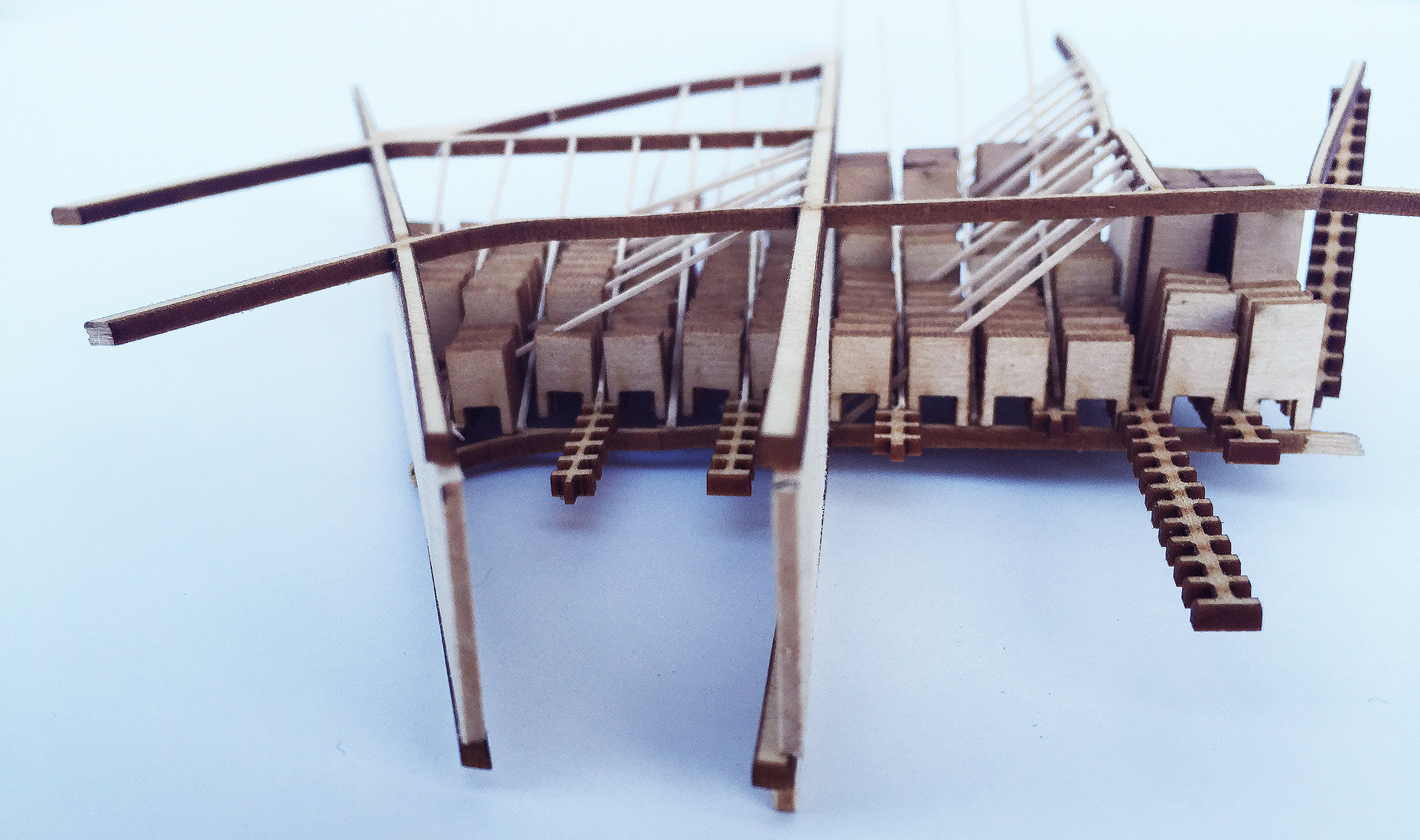

LATER EXPANSION OF THE CITY, COMPONENT 3 OF MODEL

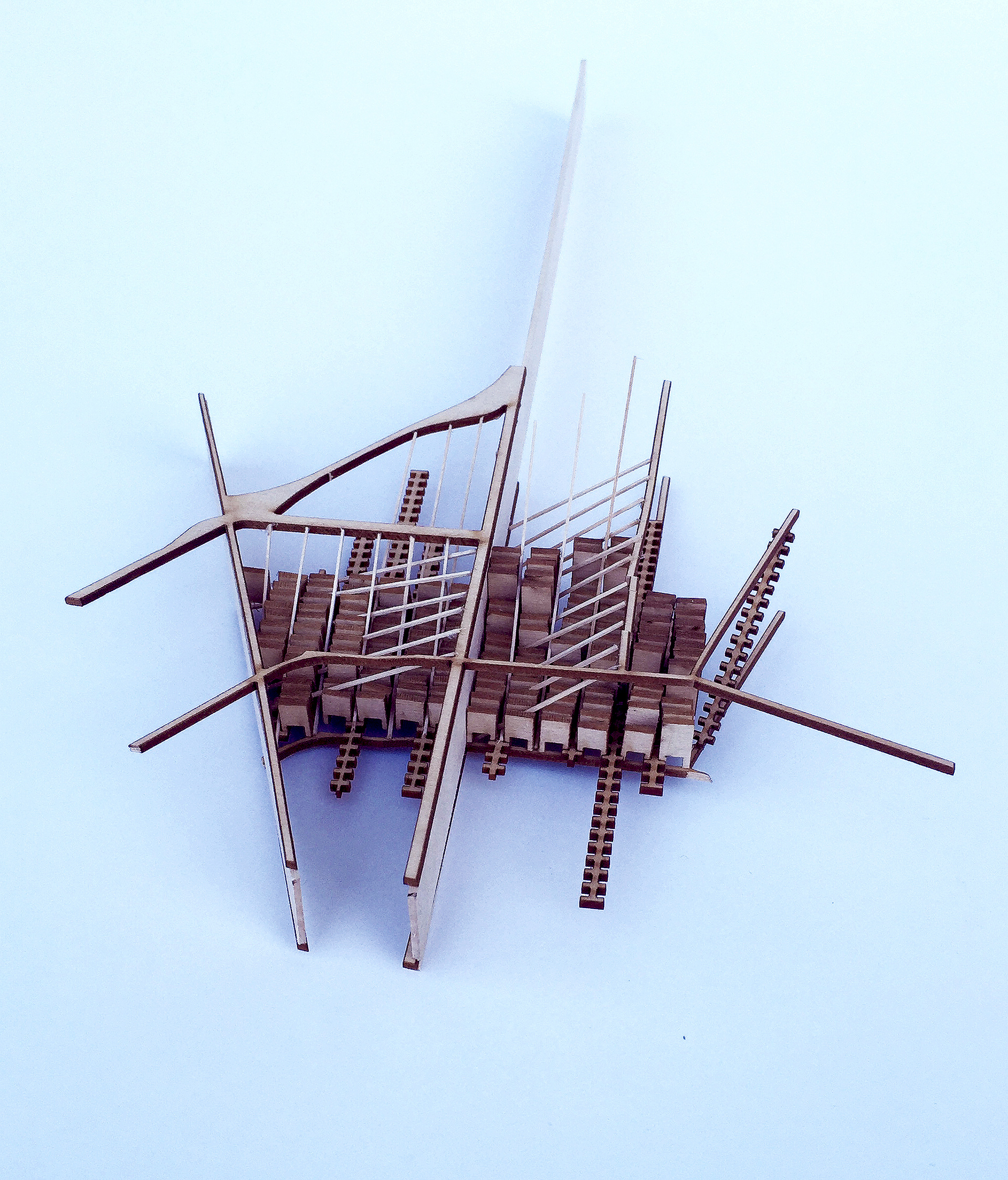

DETAIL: EXPANSION OF CITY
DIAGRAMMATIC DEVELOPMENT OF CITY OF NEW ORLEANS

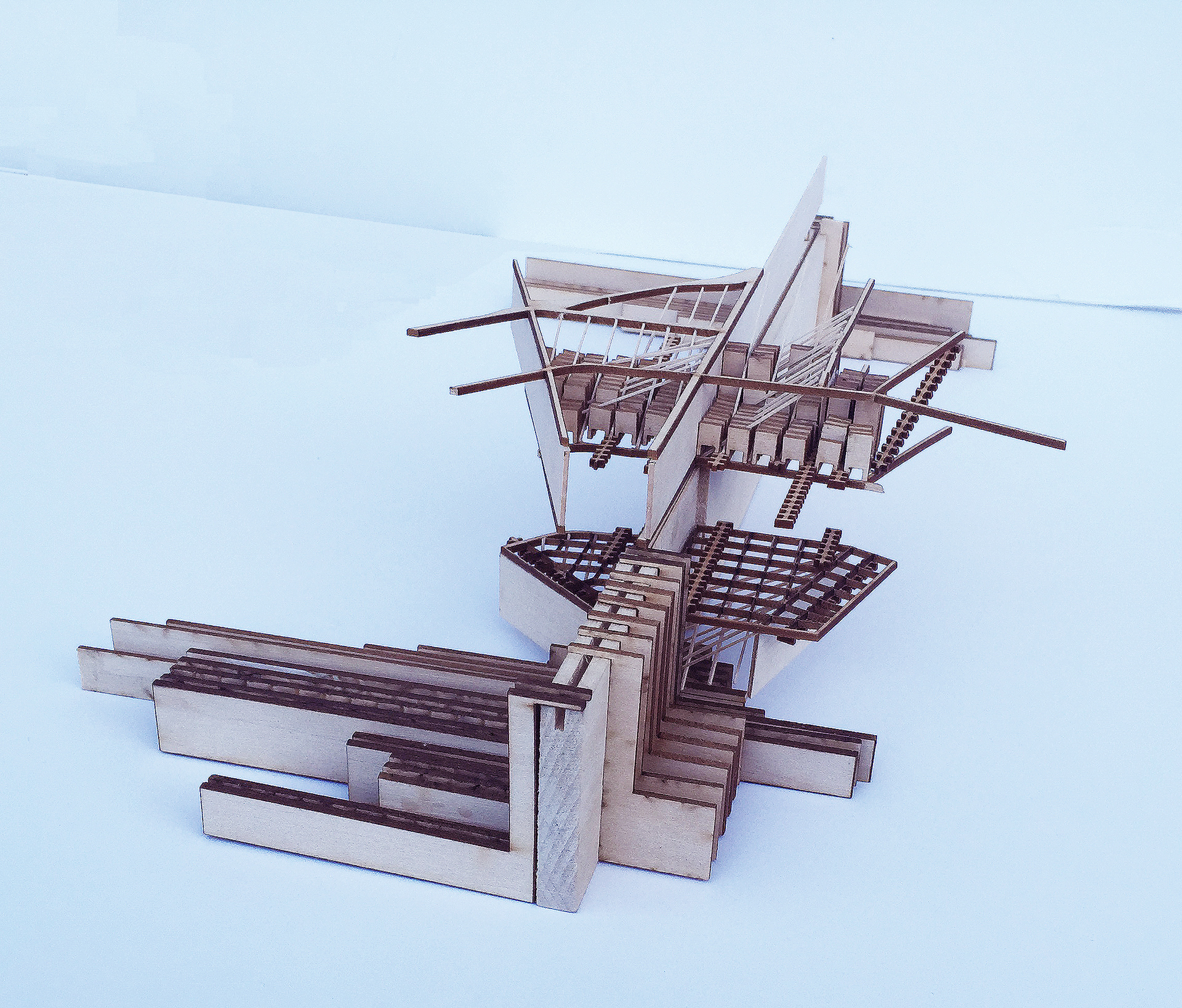

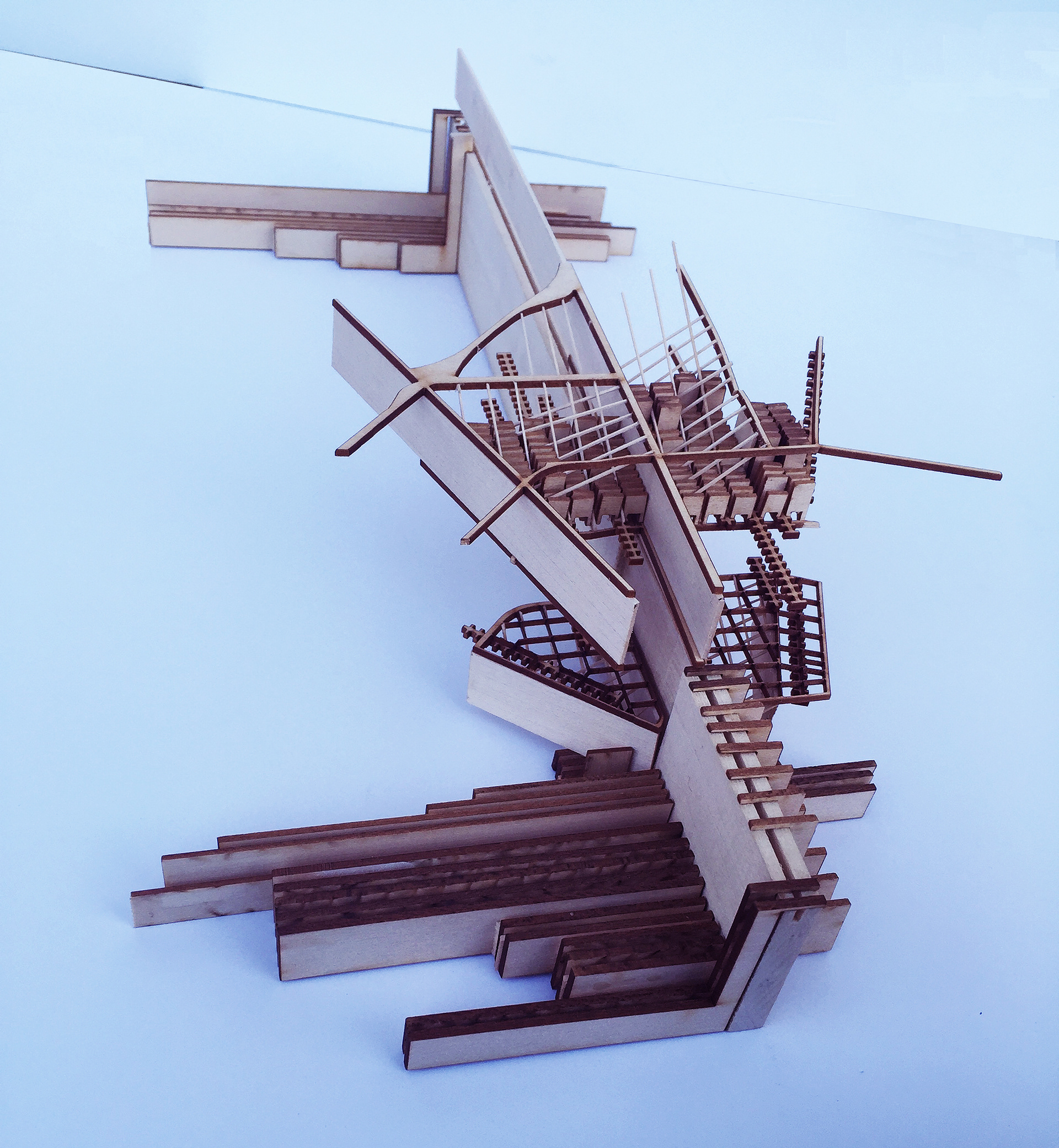

A DIAGRAMMATIC MODEL OF THE DEVELOPMENT OF THE CITY OF NEW ORLEANS, COMPOSED OF THREE PARTS: THE INITIAL CANAL AXIS, THE DISTRICT OF FAUBOURG MARIGNY, AND THE FURTHER DEVELOPMENT OF CITY
